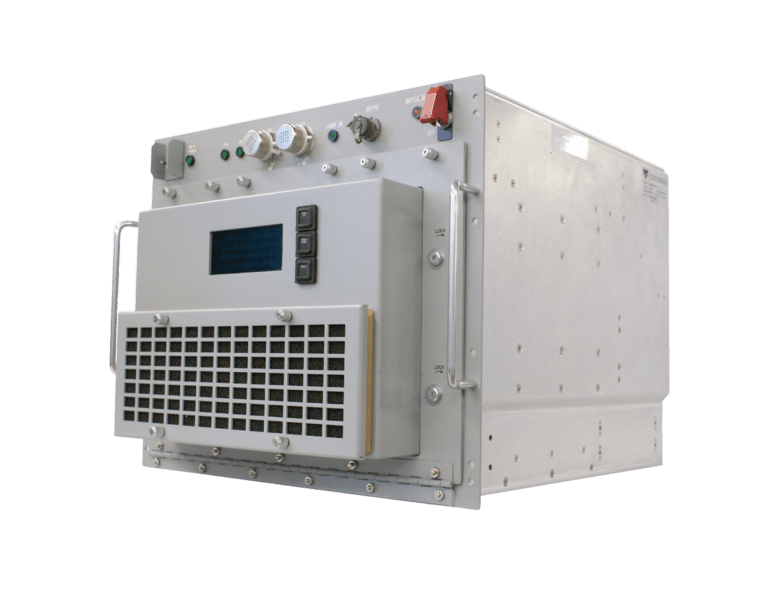

Rugged OpenVPX/ VME Rackmount Enclosures
Rugged 19-inch rackmount enclosure engineered for demanding airborne, shipboard and ground-mobile applications. The 709 Series supports VPX, VME, VME64x, VXS, VXI and CompactPCI architectures with forced-air cooling, shock-isolated card cage options and configurable power.
Specifications
Component Type: Chassis / Enclosures
Chassis Type: Rackmount
Chassis Cooling: Forced Air
Module Cooling: Air
Supported Architectures: VPX, VME, VME64x, VXS, VXI, CompactPCI
Rackmount Heights: 8U to 14U
Number of Slots: Up to 20
Construction: .125″ welded aluminum
Front Panel: .187″ aluminum
Card Cage: Rigid mount or shock-isolated
Power Supply: 350–1600 W options
AC Input: 85–264 VAC, 47–440 Hz
DC Input: 18–36 VDC options
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 85°C
Altitude: 10,000 ft
Humidity: <95% noncondensing
Shock: 20g for 11 ms
EMI / EMC: MIL-STD-461E
Environmental: MIL-STD-810F
Vibration: MIL-STD-167-1
