Backplane Solution 31-131

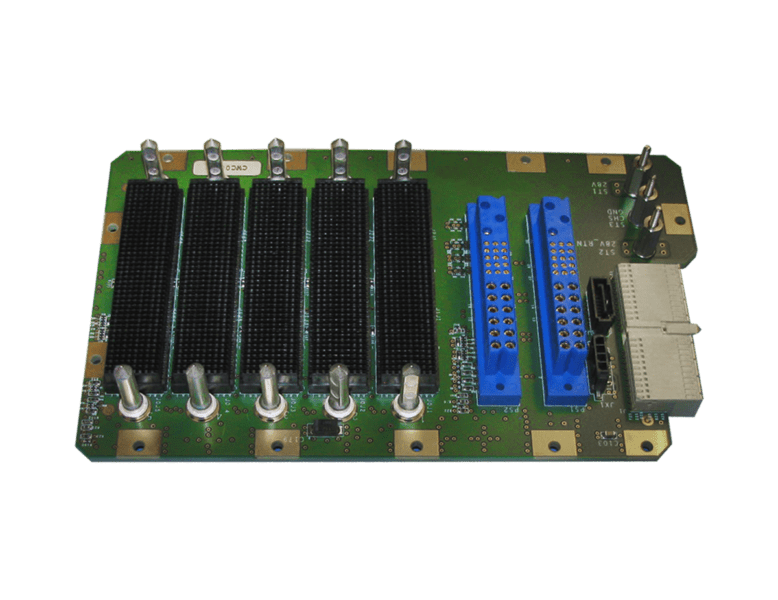

3U OpenVPX backplane includes (5) 3U OpenVPX slots and (2) 3U power supply slots.

Specifications

The rugged small form factor ATR 3U OpenVPX backplane includes (5) 3U OpenVPX backplane slots with a central switch topology and (2) 3U power supply slots. Designed for ISR applications, the backplane supports 6.25 Gbaud signaling and includes an I/O panel PWB with EMI filtering and 38999 connectors. The backplane is designed to support -40 to +55 degrees C operation, 28k ft altitude.
