Backplane Solution 31-135

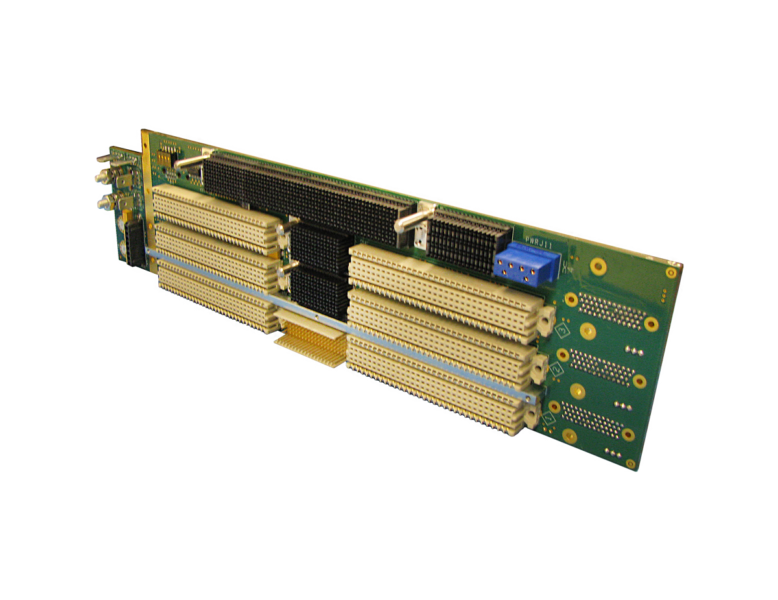

4-slot hybrid VME64x/VXS backplane designed and manufactured for shipborne applications.

Specifications

• Size: 3.260” x 12.567” x 0.165”
• 4-slot hybrid VME64x/VXS backplane
   (1) VXS Switch Slot
   (2) VXS Payload Slots
   (1) VME64x Slot
• VXS Star Topology:
   (2) 4x serial fabric ports on each VXS Payload Slot routed to VXS Switch Slot
   Per ANSI/VITA 41
• VMEbus to VME and VXS payload slots per ANSI/ VITA 1.1
• I/O Connectivity:
   (5) Cable I/O connectors with application specific I/O signals
   (2) Stiffeners for rigidity
• Conformal Coating Type UR
• 0 to +50°C operating
• Shipborne above deck application with Salt Fog requirements
