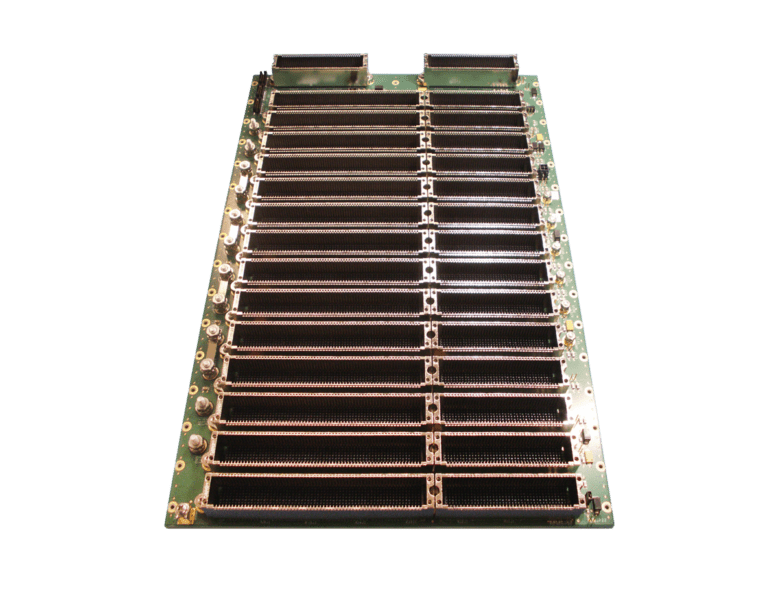

Backplane Solution 95-179

Hybrid 3U/6U OpenVPX ATR Backplane includes (2) 3U OpenVPX and (14) 6U OpenVPX slots.

Specifications
• Size: 15.961” x 10.311” x 0.212”
• Hybrid 3U/6U OpenVPX backplane
   (14) 6U OpenVPX slots
   (2) 3U OpenVPX slots
   VPX+ cabling to VPX RTM connectors
   1.0” pitch
• Interconnect Topology:
   All fabric signals pass through to rear transition connectors
• I/O Connectivity:
   RTM connectors support rear transition modules
   Supports VPX+ cabling to VPX RTM connectors
• 0 to +30°C
