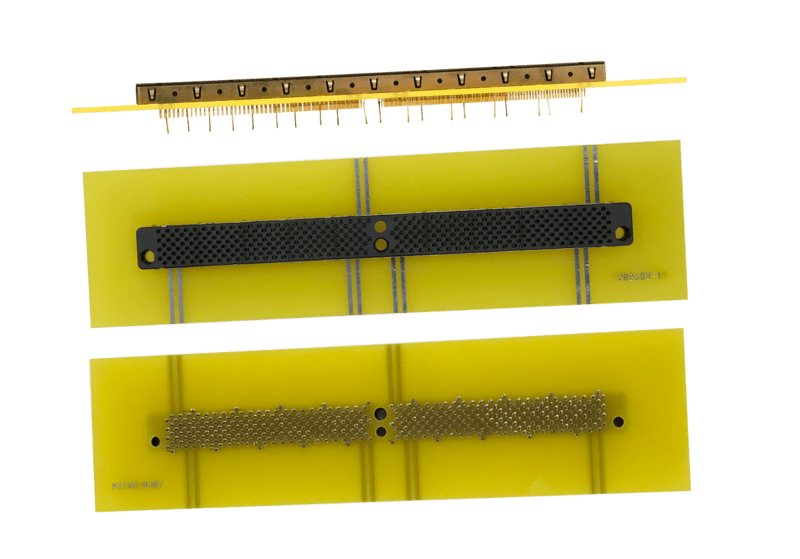

SHD/UHD Connector

Designed to meet military standards, the SHD/UHD connector has a longstanding reputation
as a modular product that can be easily configured to meet the most challenging deployed SEM-E applications.

Specifications
  • Tuning fork and blade interconnect functions reliability in rugged environment
  • More interconnect per square inch than NAFI style contacts
  • Can be configured to be shielded for higher speed applications
  • Contacts are individually replaceable for more cost effective repair when necessary
  • Scalable from 192-396 contacts per connector
  • Available with coaxial and fiber optic cable modules
  • MIL-SPEC compliant to be interchangeable and intermateable with other supplier’s offerings
