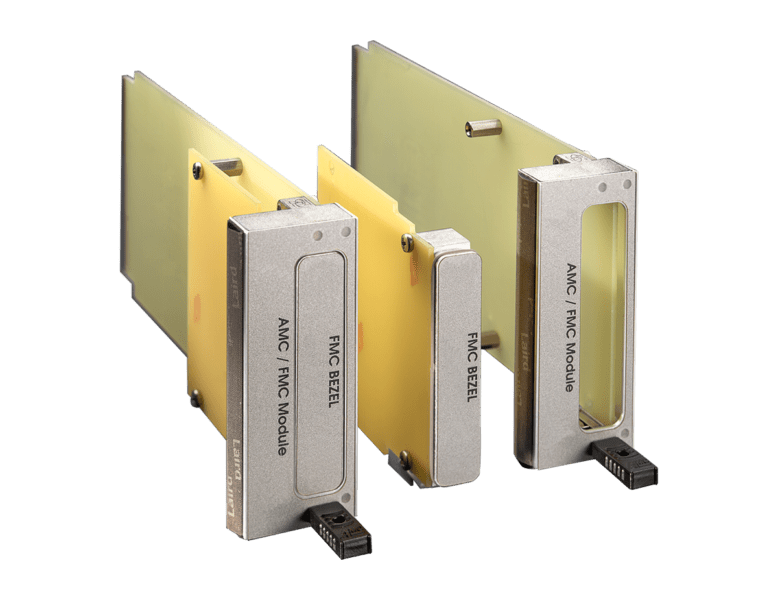

FMC Bezel

Fully assembled FMC bezel with snag-resistant gasket to enhance EMI integrity.

Specifications

• Overlay gallery to ensure crisp aesthetics
• Tapered lead-in on side flanges to guarantee smooth insertion
• Maximum face area available for I/0 features
• Assembled and ready to attach to your host
• FPGA card and FMC mezzanine
• Material – 6005-T5 Extruded Aluminum
• Finish – Trivalent Chromate
• Size – 10mm leg; 8.5mm leg
• FR4 Filler Panels – Lightest Weight
• O-ring for EMI integrity – designed for 2.5mm front panel
