Backplane Solution 97/98-176

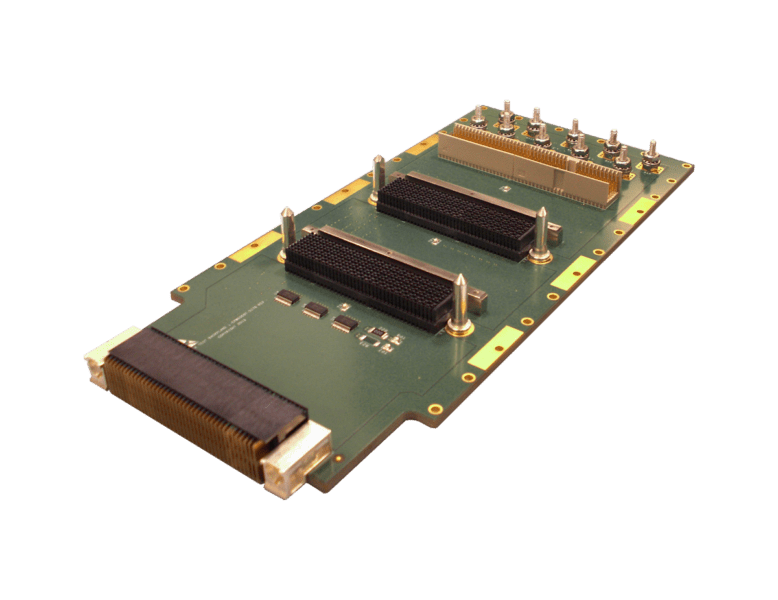

3U OpenVPX backplane with 3 slots for connectivity and I/O signals.

Specifications
• Size: 5.067” x 10.85” x 0.161”
• 3-slot 3U OpenVPX/ ComapctPCI® (cPCI) backplane adapted from ATR Solution
   Connectivity to match ATR
   (2) slots 3U OpenVPX
   (1) slot 3U cPCI
   Wide 2.4” connector pitch for debug
   I/O signals to match ATR
   Mates with I/O board
• I/O board
   Early access version from ATR
   I/O connections to mimic ATR Solution
   38999 I/O connectors to match rugged ATR
• Interconnect Topology:
   PCI bus
