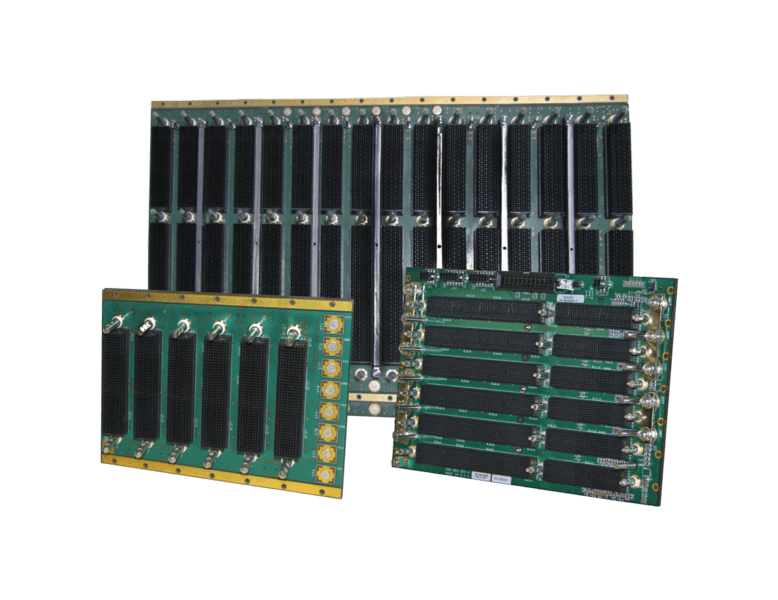

3U – 6U Gen 3 OpenVPX Backplane

Atrenne 10 GHz Gen-3 backplanes enable applications to run 40 Gb Ethernet, PCI Express Gen 3, Infiniband (QDR and FDR-10), USB 3.1 or other high-speed serial interconnects over the standard VPX connector.

Specifications

Atrenne Integrated Solutions offers a wide range of high performance backplanes, with 6U, 3U and hybrid 3U/6U models available. Designed to the demanding signal integrity requirements of the VITA 68 VPX™ compliance channel draft standard, these high performance Gen-3 backplanes offer the highest signal integrity in the industry and are typically used in air-cooled or conduction-cooled development chassis. Atrenne can also design application-specific configurations to meet your individual requirements.  Atrenne backplanes enable VPX applications to operate high-speed serial interconnectors over the standard VPX connector.

  • PCI Express Gen-3 (8 GHz)
  • 40 Gb Ethernet (4x10GHz)
  • USB 3.1 (10 Gbps)
  • Infiniband QDR and FDR-10

Atrenne developed our Gen-3 backplane technology in partnership with Curtiss-Wright and is a proud Fabric40™ Ecosystem Partner.
