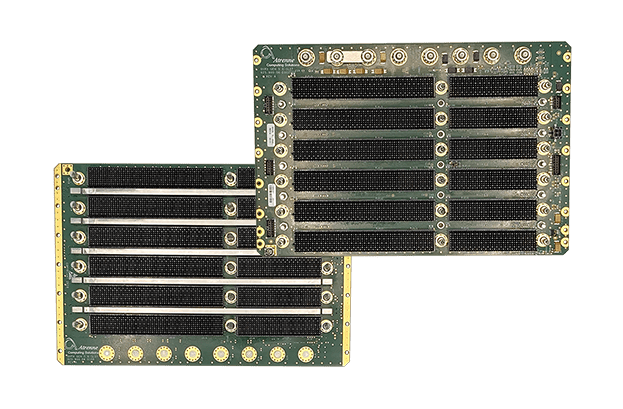

GEN-4/5 OpenVPX Backplanes Series

Industry's highest performance backplanes, designed to address the continuous growth in digital signal processing for intense data throughput applications including C4ISR, SIGINT, ELINT, IMINT, ESM and WAMI

Specifications

High performance 25 Gbaud Gen-4/5 backplanes compatible with
100 Gb Ethernet (100GBASEKR4) and PCI Express® (PCIe) Gen-4 (16 Gbaud) on OpenVPX data plane and expansion plane fabrics.

  • High performance 25 Gbaud Gen-4/5 backplanes compatible with 100 GbE (100GBASE-KR4) and PCI Express® (PCIe) Gen-4 (16 Gbaud) on OpenVPX data plane and expansion plane fabrics
  • Built with MEGTRON 6 – Ultra-low Loss, Highly Heat Resistant Circuit Board Materials
  • Refined VPX connector with smaller press-fit pins, the VITA 46 Multigig RT-3 is fully compatible and interoperable with the original VPX connectors, providing superior signal integrity performance
  • VITA 65 OpenVPX™ compliant backplanes
  • VITA 46/VITA 48 VPX REDI™-compliant with VITA 46.30 compliant RT3 connectors
  • VITA 46.10 RTM connectors
  • Provisions for mechanical stops to prevent misinsertion of payload cards
  • Stiffeners placed every other slot to ensure backplane rigidity
  • Optional rear transition connectors
  • Optional conformal coating
  • Keying and alignment per VITA 65 and VITA 46
  • Durability: mating and unmating for 200 cycles
